Kaltprofilhalter

Quick Find: Clear Filters

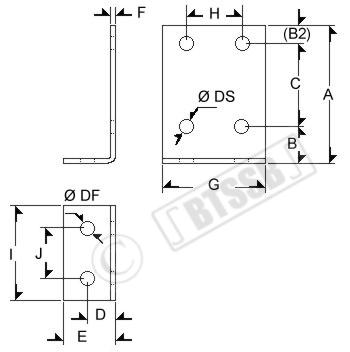

Bezeichnung Artikel
- Nr.
Maß
A
[mm]
Maß
B
[mm]
Maß
C
[mm]
Maß
(B2)
[mm]
Maß
D
[mm]
Maß
E
[mm]
Maß
F
[mm]
Maß
G
[mm]
Maß
H
[mm]
Maß
I
[mm]
Maß
J
[mm]
Ø
DS
[mm]
Ø
DF
[mm]
Passend zu Profil Artikel - Nr.
BOC140b 364 143 54 54 35 50 100 6 150 100 150 70 14 18 681
BOC180 393 155 55 81.5 18.5 40 75 6 130 70 130 70 18 18 346,771,772,347,348,773,774,
BOC121 403 120 38 56 26 35 65 6 130 70 130 70 18 18 622,398,623,624,265,651,652,653,654,
BOC105 1619 103 60 0 43 35 65 8 130 70 130 70 18 18 44,725,45,
BOCC105d 1620 114 47 42 25 48 75 6 150 100 150 70 14 18 1605,1606,
BOCC140d 1621 121 54 42 25 48 75 8 150 100 150 70 14 18 1607,1608,1609,1610,
BOCC105 1622 105 40 45 20 35 65 8 120 70 120 70 18 18 1603,1604,854,855,856,857,
BOCC90d 1623 92 27.5 45 19.5 48 75 6 150 100 150 70 14 18 1603,1604,
BOCC100c 1624 105 35 50 20 40 75 6 130 70 130 70 14 14 757,758,759,760,761,762,
BOC2763 2763 115 35 60 20 40 75 6 130 70 130 70 14 14 435
BOC2854 2854 138 48 60 30 50 80 10 130 66 130 66 18 18
BOCC120 1625 120 45 50 25 35 65 8 120 70 120 70 18 18 858,859,860,861,
BOC142-BOC2 1626 130 50 56 24 35 65 6 130 70 130 70 18 18 622,398,623,624,265,625,395,396,397,1571,1572,229,228,33,34,651,652,653,654,655,399,400,401,1578,1579,1580,48,49,50,
BOC-120 1627 120 35 60 25 40 75 6 130 70 130 70 18 18 796,797,
BOC140 1628 138 48 60 30 35 65 10 130 70 130 70 18 18 862,46,863,227,864,47,1569,865,763,764,765,766,767,726,51
BOC150 1629 148 53 60 35 35 65 10 130 70 130 70 18 18 862,46,863,227,864,47,1569,865,763,764,765,766,767,726,51,
boc150f8 3481 148 53 60 35 35 65 8 130 70 130 70 18 18
BOCC160d1 1630 138 52 61 25 48 75 8 150 100 150 70 14 18 1611,1612,1613,1614,
BOC151 1631 140 50 66 24 35 65 6 130 70 130 70 18 18 626,627,628,629,656,657,658,659,
BOCZS140 1632 130 40 70 20 40 75 6 130 70 130 70 18 18 354,882,798,355,883,799,356,884,885,
BOCZ140 1633 135 44 70 21 35 65 6 100 70 100 50 18 18 354,882,798,355,883,799,356,884,885,866,867,868,869,
BOC160 1634 140 50 70 20 40 75 6 130 70 130 70 18 18 357,358,359,866,867,868,869,
BOC2885 2885 135 44 70 21 35 65 8 100 70 100 50 18 18 354,882,798,355,883,799,356,884,885,866,867,868,869
BOC2886 2886 135 44 70 21 35 65 8 100 70 100 50 18 18 354,882,798,355,883,799,356,884,885,866,867,868,869
BOC180d 1635 180 81 74 25 48 75 6 152 100 152 70 18 18
BOCS120b 1636 123 26 80 17 50 100 6 150 100 150 70 14 18 700
BOCC160d2 1637 155 50 80 25 48 75 8 150 100 150 70 14 18 682,683,684,870,871,872,873,
BOC170b 1638 173 56 80 37 50 100 6 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,
BOC180b 1639 183 56 80 47 50 100 6 150 100 150 70 14 18 683,684,874,1615,875,876,1616,877,
BOCC180d1 1640 163 58 80 25 48 75 10 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,
BOCC180d2 1641 170 65 80 25 48 75 10 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,878,1617,879,880,1618,881,
BOC180c 1642 176 60 81.5 34.5 40 75 6 130 70 130 70 14 14 771,772,773,771,
BOC172-BOC3 1643 160 50 86 24 35 65 6 130 70 130 70 18 18 630,631,632,633,634,1573,319,3,4,5,6,7,8,660,661,662,663,664,1581,1582,52,53,54,66,67,55,
BOC172J90 2117 160 50 86 24 35 65 6 130 70 130 90 18 18 630,631,632,633,634,1573,319,3,4,5,6,7,8,660,661,662,663,664,1581,1582,52,53,54,66,67,55
BOCZ160 1644 155 44 90 21 35 65 6 100 70 100 50 18 18 886,887,888,889,
BOCZ180 1645 175 54 90 31 35 65 8 120 70 120 70 18 18 886,887,888,889,890,800,891,801,892,893,
BOC-210 1646 180 65 90 25 40 75 8 130 70 130 70 18 18 802,803,804,
BOC2735 2735 180 142 38 45 90 10 175 135 175 125 14 18
BOC200d 1647 200 81 94 25 48 75 8 152 100 152 70 18 18
BOCS140b 1648 143 26 100 17 50 100 6 150 100 150 70 14 18 838,839,368,701,367,369,
BOCS140 1649 148 30 100 18 40 75 6 160 100 160 70 14 18 838,839,368,701,367,369,
BOC200 1650 175 55 100 20 40 75 6 130 70 130 70 18 18 349,350,351,775,776,777,778,779,768,769,770,
BOC200c 1651 186 60 100 26 40 75 6 130 70 130 70 14 14 349,350,351,775,776,777,778,779,768,769,770,
BOCS140c 1652 149 29 102 18 40 75 6 160 100 160 70 14 14 728,729,730,
BOCS-145 1653 153 30 105 18 40 75 6 160 100 160 70 14 18 813,814,
BOC200b 1654 203 57 108 38 50 100 8 150 100 150 70 14 18 685,686,687,
BOCZ200 1655 195 54 110 31 35 65 8 120 70 120 70 18 18 894,895,896,897,
BOC220d 1656 220 81 114 25 48 75 8 152 100 152 70 18 18
BOC201 1657 190 50 116 24 35 65 8 130 70 130 70 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC202-BOC4 1658 190 50 116 24 35 65 6 130 70 130 70 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC202J90 2118 190 50 116 24 35 65 6 130 70 130 90 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC202-8mm 1876 190 50 116 24 35 65 8 130 70 130 70 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC220 1659 195 55 120 20 40 75 6 130 70 130 70 18 18 352,353,
BOC220b 1660 223 67 128 28 50 100 8 150 100 150 70 14 18 688
BOCS170b 1661 173 26 130 17 50 100 6 150 100 150 70 14 18 370,702,371,372,
BOCS170 1662 178 30 130 18 40 75 6 160 100 160 70 14 18 370,702,371,372,
BOCZ220 1663 215 54 130 31 35 65 8 120 70 120 70 18 18 902,903,904,905,898,899,900,901,
BOCZ240 1664 235 64 130 41 35 65 8 120 70 120 70 18 18 902,903,904,905,898,899,900,901,
BOCS170c 1665 179 29 132 18 40 75 6 160 100 160 70 14 14 731,732,733,
BOC240d 1666 240 81 134 25 48 75 8 152 100 152 70 18 18
BOCS-175 1667 183 30 135 18 40 75 6 160 100 160 70 14 18 815,816,
BOCC-180 1668 185 30 140 15 35 65 8 120 70 120 70 18 18 840,841,
BOC231 1669 220 50 146 24 35 60 8 130 70 130 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC232-BOC5 1670 220 50 146 24 35 65 6 130 70 130 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC232-BOC5-S8 3085 220 50 146 24 35 65 8 130 70 130 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC232150-90 2296 220 50 146 24 35 65 6 150 70 150 90 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC232160-100 2651 220 50 146 24 35 65 6 160 70 160 100 18 16 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
boc232_boc5_g120 3257 220 50 146 24 35 65 6 120 70 120 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC3086 3086 220 50 146 24 35 65 8 160 70 160 100 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC3087 3087 220 50 146 24 35 65 8 130 70 130 80 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC3624 3624 295 126 146 23 35 60 12 130 70 130 70 18 18
BOC240b 1671 243 67 148 28 50 100 8 150 100 150 70 18 18 689
BOC250 1672 245 60 150 35 40 75 10 130 70 130 70 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOC250c 1673 245 60 150 35 40 75 8 130 70 130 70 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOCZ260 1674 255 64 150 41 45 75 10 150 70 150 100 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOCZ240d 1675 229 47 157 25 48 75 8 152 100 152 70 18 18 1598,1599,1600,
BOCS200b 1676 203 26 160 17 50 100 8 150 100 150 70 14 18 373,703,374,375,
BOC2734 2734 203 26 160 17 45 90 10 200 100 200 140 14 18
BOCS200 1677 208 30 160 18 40 75 8 160 100 160 70 14 18 373,703,374,375,
BOCS200c 1678 209 29 162 18 40 75 8 160 100 160 70 14 14 734,735,736,737,
BOCS-205 1679 213 30 165 18 40 75 8 160 100 160 70 14 18 817,818,819,
BOC260b 1680 263 57 168 38 50 100 8 150 100 150 70 18 18 690,691,692,693,694,
BOCC-210 1681 215 30 170 15 35 65 10 120 70 120 70 18 18 842,843,844,
BOCZ280 1682 275 64 170 41 45 75 12 150 70 150 100 18 18 832,833,834,910,911,912,913,
BOC261 1683 250 50 176 24 35 60 10 130 70 130 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331,
BOC262-BOC6 1684 250 50 176 24 35 65 6 130 70 130 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331,
boc262_s8 3337 250 50 176 24 35 65 8 130 70 130 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331,
BOC300b 1685 303 72 178 53 50 100 8 150 100 150 70 18 18 695,696,697,698,699,
BOC-300 1686 270 65 180 25 40 75 10 130 70 130 70 18 18 835,836,837,
BOCS230b 1687 233 26 190 17 50 100 8 150 100 150 70 14 18 376,704,705,377,378,
BOCS230 1688 238 30 190 18 40 75 8 160 100 160 70 14 18 376,704,705,377,378,
BOC300 1689 285 60 190 35 40 75 10 130 70 130 70 18 18 386,785,914,387,786,915,388,916,917,787,788,
BOCZ300 1690 295 64 190 41 45 75 12 150 70 150 100 18 18 386,785,914,387,786,915,388,916,917,787,788,
BOCS-235 1691 243 30 195 18 40 75 10 160 100 160 70 14 18 820,821,822,
BOC302-BOC7 1692 280 60 195 25 40 75 8 130 70 130 70 18 18 320,26,27,28,1590,1591,1592,1593,
boc302_boc7_j90 3262 280 60 195 25 40 75 8 150 70 150 90 18 18 320,26,27,28,1590,1591,1592,1593,
BOCS250c 1693 262 40 196 26 40 75 8 160 100 160 70 18 18 738,739,740,741,
BOCZ300d 1694 279 57 197 25 48 75 12 152 100 152 70 18 18 1601,1602,
BOCC-240 1695 245 30 200 15 35 65 12 120 70 120 70 18 18 845,846,847,
BOCS260b 1696 263 26 220 17 50 100 8 150 100 150 70 14 18 706,707,708,709,710,
BOCS-265 1697 273 30 225 18 40 75 12 160 100 160 70 14 18 823,824,825,
BOCC-270 1698 275 30 230 15 35 65 12 120 70 120 70 18 18 848,849,850,
BOC342-BOC8 1699 320 60 235 25 40 75 8 130 70 130 70 18 18 1577,29,30,31,1594,1595,1596,1597,
BOC342-BOC8-F12 2628 320 60 235 25 45 75 12 130 70 130 70 18 18 1577,29,30,31,1594,1595,1596,1597,
BOC350c 1700 335 65 240 30 40 75 12 130 70 130 70 18 18 789,790,791,792,
BOC-PS-350.SE 3270 345 64 240 41 50 80 15 180 70 180 120 18 18
BOCS300c 1701 312 40 246 26 40 75 10 160 100 160 70 18 18 742,743,744,745,746,
BOCS300b 1702 303 26 260 17 50 100 8 150 100 150 70 14 18 851,852,853,711,826,712,827,713,828,714,
BOCS320b 1703 327 38 262 27 50 100 8 150 100 150 70 18 18 715,716,717,718,719,
BOC400c 1704 385 65 290 30 40 75 14 130 70 130 70 18 18 793,794,795,
BOCS350b 1705 357 38 292 27 50 100 8 150 100 150 70 18 18 720,721,722,723,724,
BOCS350c 1706 362 40 296 26 40 75 12 160 100 160 70 18 18 747,748,749,750,751,
BOCS420c 1707 431 63 320 48 40 75 14 160 100 160 70 18 18 752,753,754,755,756,
BOC402-BOC9 3088 380 60 295 25 40 75 8 130 70 130 70 18 18
BOC262-BOC6
G150-E90
2608 250 50 176 24 50 90 6 150 70 150 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262-BOC6
G150-E90-F10
2609 250 50 176 24 50 90 10 150 70 150 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262-BOC6
G160-E90-F10
2610 250 50 176 24 50 90 10 160 70 160 110 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262-BOC6
G120-E90-F10
2611 250 50 176 24 50 90 10 120 70 120 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262-S8-G120 2705 250 50 176 24 35 65 8 120 70 120 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262-S8-G150 2706 250 50 176 24 35 65 8 150 70 150 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262_F8-
G120-E65
2734 250 50 176 24 50 65 10 120 70 120 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC262_F8-
G150-E65-J90
2735 250 50 176 24 50 65 10 150 70 150 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331
BOC3B-BOC172B 3271 160 50 86 24 70 100 12 160 70 160 70 18 18x30
BOC4B-BOC202B 3272 190 50 116 24 70 100 12 160 70 160 70 18 18x30
BOC5B-BOC232B 3273 220 50 146 24 70 100 12 160 70 160 70 18 18x30
BOC6B-BOC262B 3274 250 50 176 24 70 100 12 160 70 160 70 18 18x30
BOC7B-BOC302B 3275 280 60 195 25 70 100 12 160 70 160 70 18 18x30
BOC8B-BOC342B 3276 320 60 235 25 70 100 12 160 70 160 70 18 18x30
BOC3C-BOC172C 3277 160 50 86 24 70 140 12 130 70 130 70 18 18x30
BOC4C-BOC202C 3278 190 50 116 24 70 140 12 130 70 130 70 18 18x30
BOC5C-BOC232C 3279 220 50 146 24 70 140 12 130 70 130 70 18 18x30
BOC6C-BOC262C 3280 250 50 176 24 70 140 12 130 70 130 70 18 18x30
BOC7C-BOC302C 3281 280 60 195 25 70 140 12 130 70 130 70 18 18x30
BOC8C-BOC342C 3828 320 60 235 25 70 140 12 130 70 130 70 18 18x30
BOCB3283 3283 84 50 34 70 / 110 140 12 130 80 130 18 18x30
BOC3284 3284 130 43 56 31 80 110 6 130 70 130 90 12x10 13
BOC3285 3285 130 43 56 31 44 / 54 90 6 130 70 130 90 12x10 13
BOC3286 3286 130 43 56 31 35 65 6 130 70 130 90 12x10 13
BOC3323 3323 175 54 90 31 35 65 8 120 70 120 70 18 18
BOC3452 3452 150 58 60 32 58 150 4 120 60 120 60 18 18
BOC3541 3541 320 60 235 25 40 75 8 170 70 170 110 18 18
BOC3542 3542 280 60 195 25 40 75 8 120 70 120 70 18 18
BOC3543 3543 280 60 195 25 40 75 8 170 70 170 110 18 18
BOC3559 3559 180 79 70 31 35 65 6 110 70 110 50 18 18
BOC3563 3563 190 50 116 24 35 65 6 160 70 160 96 18 18
BOC3624 3624 295 126 146 23 35 60 12 130 70 130 70 18 18
BOC3628 3628 190 50 116 24 35 65 6 150 70 150 90 18 18
BOC3634 3634 340 60 240 40 40 75 10 140 70 140 70 18 18
bocz3g180_70_dn3 3631 169 47 100 22 35 60 10 140 70 140 70 18 18
